Telecentric Lens

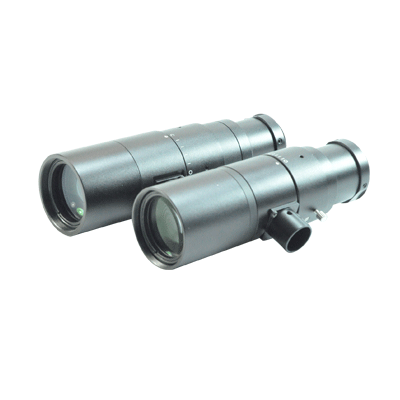

MML075-SR110DVI-18C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.

▪ Image format 18.5mm (1.2" sensor)

▪ Adjustable the best depth of field corresponding variable iris.


MML075-SR110DVI-18C
Download DataTechnical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML075-SR110DVI-18C
  • Magnification x
  • 0.75
  • O/I (mm)
  • 269.9
  • WD (mm)
  • 110
  • Resolution (μm)
  • 5.08~19.7
  • Depth of Field (mm)
  • 0.796~3.129
  • NA
  • 0.066~0.017
  • Effective Fno
  • 5.6~22
  • Distortion (%)
  • ≤0.018
  • IF (mm)
  • 18
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

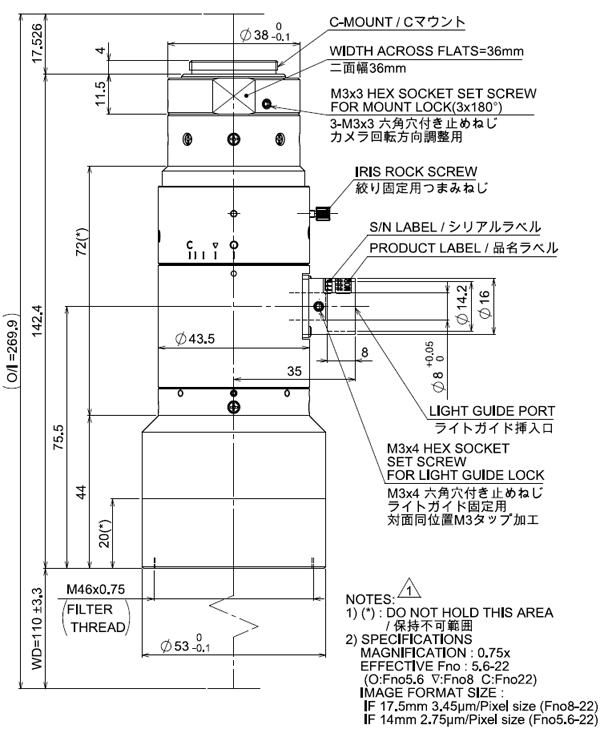

External View
