Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Macro/CCTV Lens

ML-U3528ZR-19C

▪ High resolving power 200lp/mm,24.5MP,High resolution 2.0μm/pixel
▪ Large Format 1.2" compatible
▪ VIR-NIR wide waveband coating design (400~1100nm)
▪ Floating mechanism achieves high resolution from close range to far range
▪ Flagship model compatible with high-performance cameras
ML-U3528ZR-19C
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
PCB substrate inspection
Appearance inspection of automotive parts and pharmaceutical packaging
Appearance & alignment of electronic components
Model Description
Specifications
  • Spec
  • ML-U3528ZR-19C
  • Focal Length （mm）
  • 35
  • Fno
  • 2.8-16
  • Image format （mm）
  • 19.3 (1.2 " sensor)
  • Resolving power (lp/mm)
  • Center：200　Margin：150
  • Minimum WD(mm)
  • 100

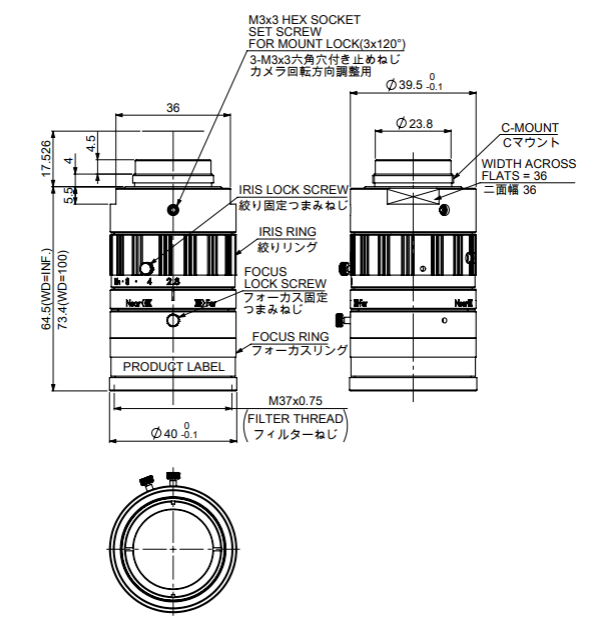

External View
