SOD-200-22C-NSWIR

▪ Tube Lens for Infinity-Corrected Objective Lens
▪ Compatible objective lenses : Olympus, Mitutoyo, Nikon
▪ Dedicated infrared design (900~1700 nm)
▪ Coaxial illumination mechanism
SOD-200-22C-NSWIR
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Specifications
  • Spec
  • SOD-200-22C-NSWIR
  • Focal Length
  • 201.73
  • Effective Fno
  • 14.11
  • IF (mm)
  • 22.5
  • Spec with objective lens MPLFLN 10x
  • Focal Length
  • 5.78
  • Magnification (x)
  • 20.17
  • WD (mm)
  • 10
  • Resolution (μm)*1
  • 1.3
  • Depth of Field (mm)*2
  • 0.001
  • NA
  • 0.581
  • Effective Fno
  • 14.11
  • Largest Compatible Sensor
  • 4/3"
  • Mount
  • C Mount
*1 Resolution without differential interference contrast.(@λ=550nm)
*2 Depth of field is calculated with a permissible circle of confusion diameter of φ20um

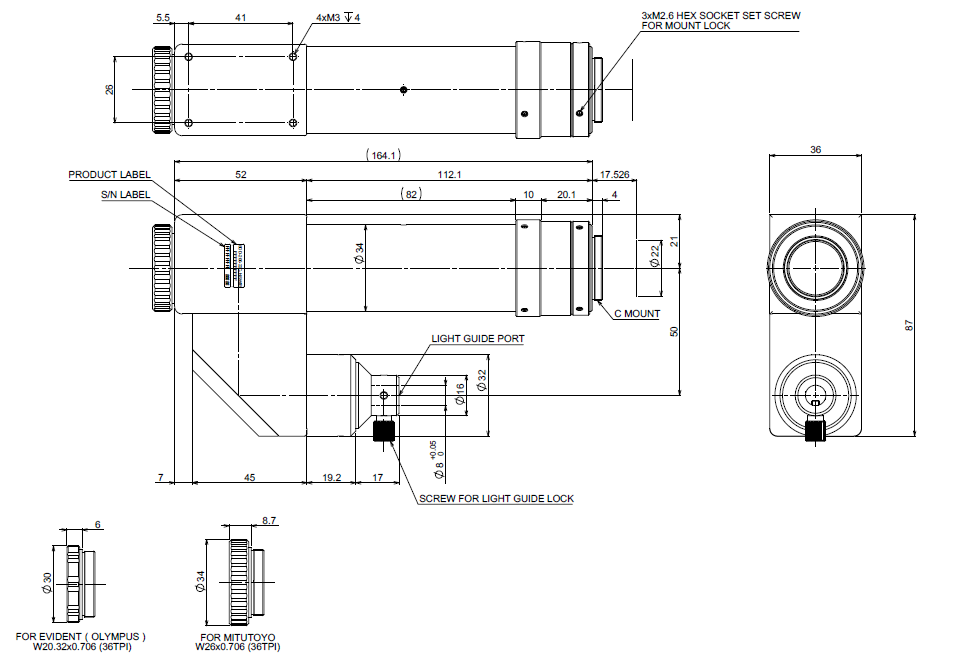

External View
