显微镜头

SOD-200-40M58

▪ Tube Lens for Infinity-Corrected Objective Lens
▪ Compatible objective lenses : MOL10-03012HR-38MA
▪ Coaxial illumination mechanism
▪ Large Format 40mm compatible
▪ Very low distortion
SOD-200-40M58
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Specifications
  • Spec
  • SOD-200-40M58
  • Focal Length
  • 200
  • Effective Fno
  • 13.87
  • IF (mm)
  • 40
  • Spec with objective lens MOL10-03012HR-38MA
  • Focal Length
  • 21.04
  • Magnification (x)
  • 10
  • WD (mm)
  • 11.5
  • Resolution (μm)*1
  • 1.1
  • Depth of Field (mm)*2
  • 0.007
  • NA
  • 0.3
  • Effective Fno
  • 16.45
  • Largest Compatible Sensor
  • 38
  • Mount
  • M58 Mount
*1 Resolution without differential interference contrast.(@λ=550nm)
*2 Depth of field is calculated with a permissible circle of confusion diameter of φ20um

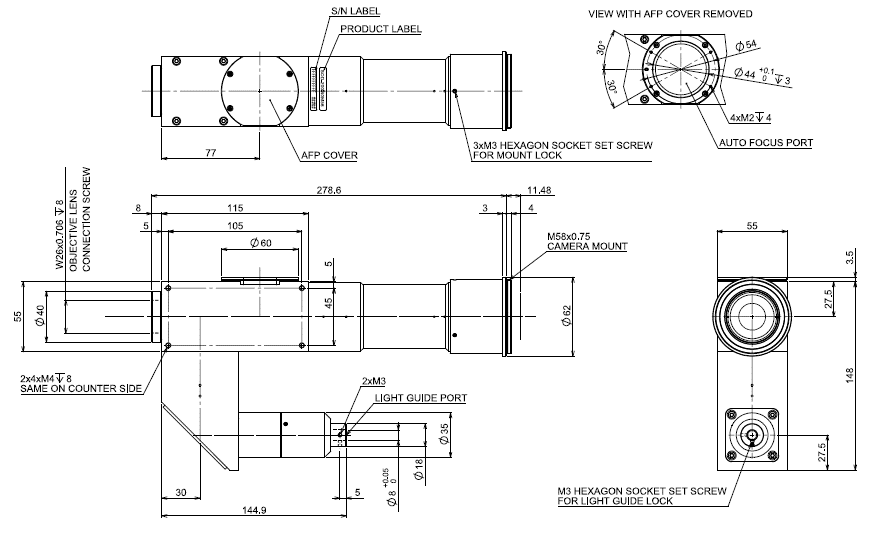

External View
