显微镜头

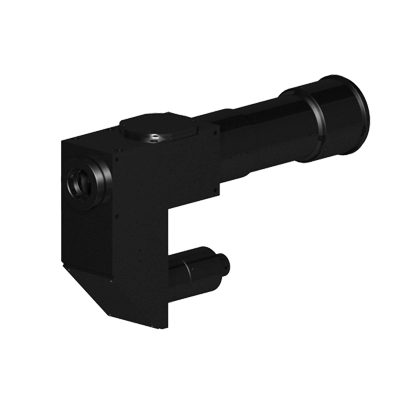

SOD-180-32M58-AFP

▪ Tube Lens for Infinity-Corrected Objective Lens
▪ Compatible objective lenses : MPLFLN10X
▪ Coaxial illumination mechanism
▪ Large Format 32mm compatible
▪ Added autofocus to SOD-180-32M58
SOD-180-32M58-AFP
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Specifications
  • Spec
  • SOD-180-32M58-AFP
  • Focal Length
  • 180
  • Effective Fno
  • 15.9
  • IF (mm)
  • 32
  • Spec with objective lens MPLFLN 10x
  • Focal Length
  • 23.9
  • Magnification (x)
  • 10
  • WD (mm)
  • 11
  • Resolution (μm)*1
  • 1.1
  • Depth of Field (mm)*2
  • 0.006
  • NA
  • 0.3
  • Effective Fno
  • 15.9
  • Largest Compatible Sensor
  • 32
  • Mount
  • M58 Mount
*1 Resolution without differential interference contrast.(@λ=550nm)
*2 Depth of field is calculated with a permissible circle of confusion diameter of φ20um

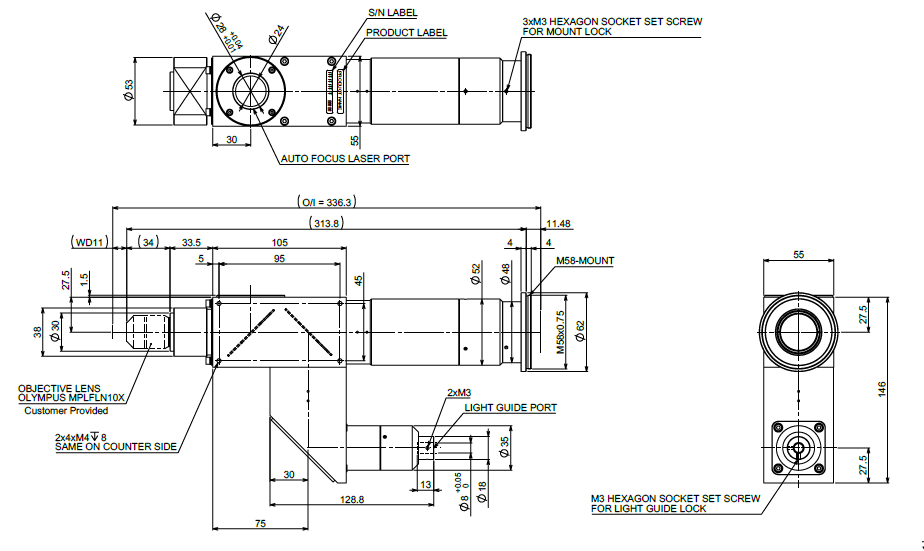

External View
