显微镜头

SOD-180-27M42-DIC

▪ Tube Lens for Infinity-Corrected Objective Lens
▪ Compatible objective lenses : MPLFLN10X and MPLFLN5X (Olympus)
▪ Coaxial illumination mechanism
▪ Large Format 26.5mm compatible
SOD-180-27M42-DIC
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Specifications
  • Spec
  • SOD-180-27M42-DIC
  • Focal Length
  • 180
  • Effective Fno
  • 15
  • IF (mm)
  • 26.5
  • Spec with objective lens MPLFLN 10x
  • Magnification (x)
  • 10
  • NA
  • 0.3
  • WD (mm)
  • 11
  • Resolution (μm)*1
  • 1.1
  • Depth of Field (mm)*2
  • 0.006
  • Spec with objective lens MPLFLN 5x
  • Magnification (x)
  • 5
  • NA
  • 0.15
  • WD (mm)
  • 20
  • Resolution (μm)*1
  • 2.2
  • Depth of Field (mm)*2
  • 0.026
*1 Resolution without differential interference contrast.(@λ=550nm)
*2 Depth of field is calculated with a permissible circle of confusion diameter of φ20um

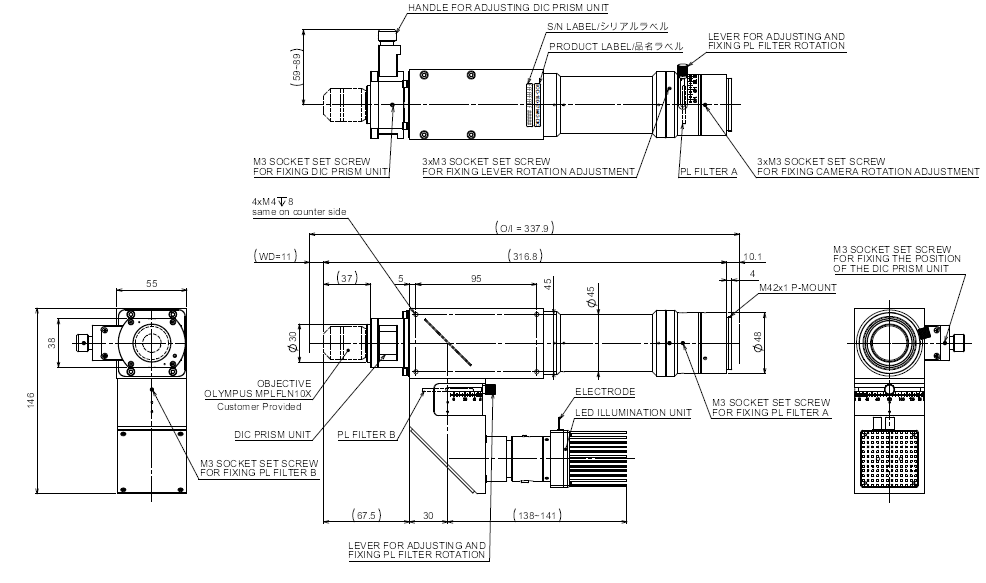

External View
