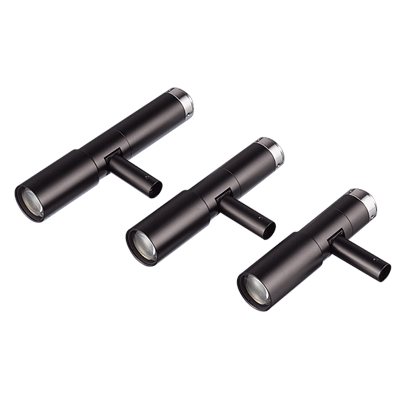

▪ Dedicated near-infrared design (770 nm to 1200 nm) ▪ Telecentric optical system with very little image distortion ▪ High magnification models ▪ Uniform coaxial illumination functionality covering the entire field of view
Main Applications
Wafer void and MEMS inspections
Circuit board detection
Character Recognition
Model Description
Specifications
Spec
MML4-80D-IR
Coaxial Illumination
-
Magnification
4
WD (mm)
82.4
Resolution (μm)
4
Depth of Field (mm)
0.05
NA
0.15
Effective Fno
13.3
Distortion (%)
-0.021
Weight (g)
43
Largest Compatible Sensor
2/3" type
Mount
C Mount
* Depth of field is calculated assuming a horizontal 435TV resolution using a 2/3" CCD camera. (Permissible circle of confusion on the image-formation side: 30μ). * Resolution values indicate the theoretical resolution at a wavelength of 985nm.
