MTL-12023P-019

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm



MTL-12023P-019
Download Data User Manual Drawing Data Drawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.
Model Description
Specifications
Spec MTL-12023P-019
Max IF (mm) 23
FOV type (Φmm) 120
Mag. (x) 0.192
WD (mm) 255
Field of View 1/2" H 6.4 33
V 4.8 25
D 8 42
2/3" H 8.8 46
V 6.6 34
D 11.0 57
1.1" H 14.1 74
V 10.3 54
D 18.1 91
4/3" H 18.1 96
V 13.6 72
D 90 120
Optical specifications Effective F# 8.0
Distortion (%) 0.03
Telecentricity (deg.) 0.04
Resolution
@520nm 		(μm) 26.5
DOF
@40um 		(mm) 17.4
Mechanical specifications Front Outer dia. (Φmm) 160
Barrel Length (mm) 373.7
Weight (kg) 3.49
Mount P

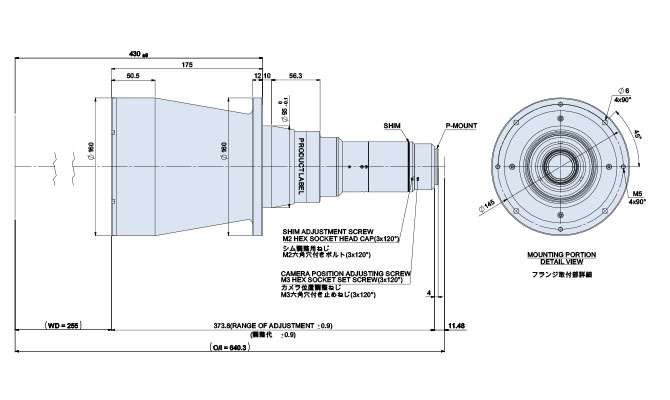

External View
