MTL-4535P-078

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ P Mount : M42P1, FB11.48mm
MTL-4535P-078
Download Data User Manual Drawing DataDrawing Data（STEP）
Main Applications
Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections
Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc
Model Description
Specifications
Spec MTL-4535P-078
Max IF (mm) 35
FOV type (Φmm) 45
Mag. (x) 0.776
WD (mm) 110
Field of View 2/3" H 8.8 11
V 6.6 9
D 11 14
1.1" H 14.1 18
V 10.3 13
D 18.1 23
4/3" H 13.1 23
V 13.6 18
D 22.6 29
35mm H 23 30
V 23 30
D 32.6 42
Optical specifications Effective F# 9.2
Distortion (%) -0.04
Telecentricity (deg.) 0.05
Resolution
@520nm 		(μm) 7.5
DOF
@40um 		(mm) 1.2
Mechanical specifications Front Outer dia. (Φmm) 71
Barrel Length (mm) 247.0
Weight (kg) 1.04
Mount P

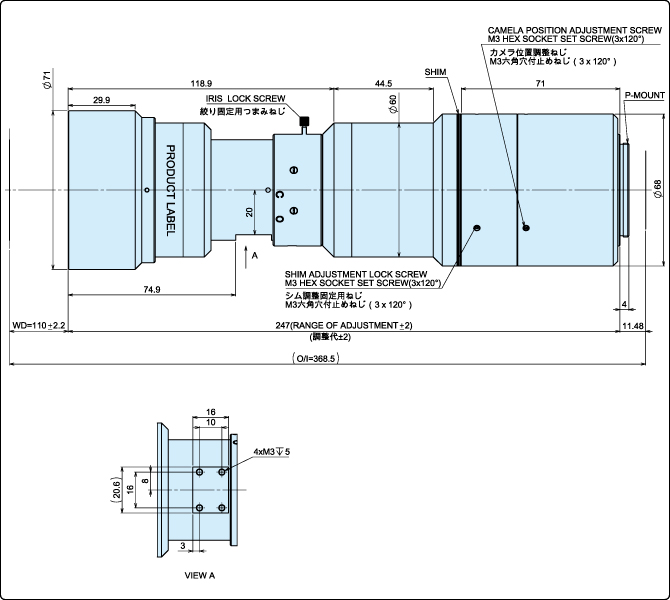

External View
