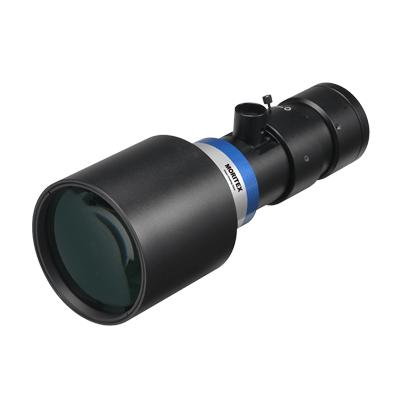

| Spec | MTL-8035P-044 | |||
|---|---|---|---|---|
| Max IF (mm) | 35 | |||
| FOV type (Φmm) | 80 | |||
| Mag. (x) | 0.433 | |||
| WD (mm) | 165 | |||
| Field of View | 2/3" | H | 8.8 | 20 |
| V | 6.6 | 15 | ||
| D | 11 | 25 | ||
| 1.1" | H | 14.1 | 33 | |
| V | 10.3 | 24 | ||
| D | 18.1 | 42 | ||
| 4/3" | H | 13.1 | 42 | |
| V | 13.6 | 31 | ||
| D | 22.6 | 52 | ||
| 35mm | H | 23 | 53 | |
| V | 23 | 53 | ||
| D | 32.6 | 75 | ||
| Optical specifications | Effective F# | 9.2 | ||
| Distortion | (%) | -0.03 | ||
| Telecentricity | (deg.) | 0.03 | ||
|
Resolution @520nm |
(μm) | 13.5 | ||
|
DOF @40um |
(mm) | 3.9 | ||

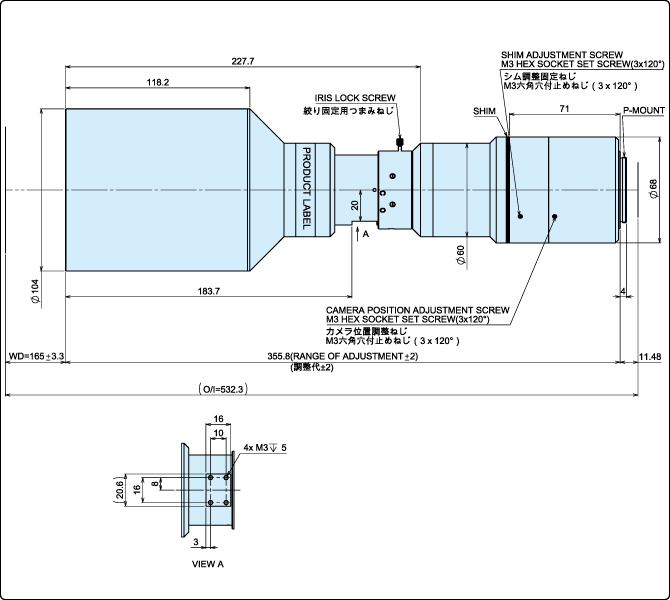

| Mechanical specifications | Front Outer dia. | (Φmm) | 104 | |
| Barrel Length | (mm) | 355.8 | ||
| Weight | (kg) | 1.68 | ||
| Mount | P | |||
