▪ Vibration resistance up to 5G, 10G version optional available

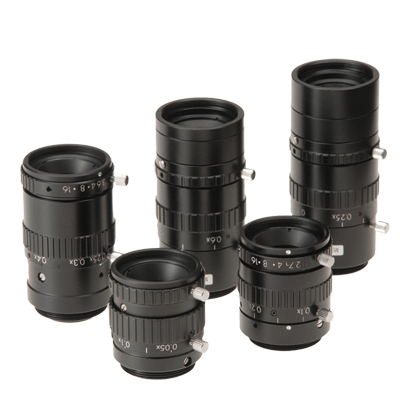

▪ Five models with magnification range from 0.05x to 1.72x (using close-up ring)
▪ Close-up rings can be used to adjust magnification and working distance
▪ Distortion-free, high performance design
▪ Maximum compatible Image format : Diameter 12.8 mm

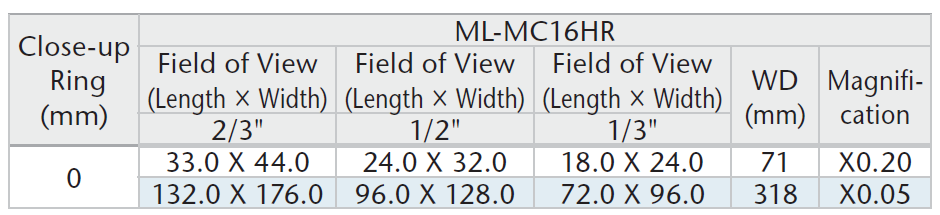

Matrix Chart of Field of View, WD, and Magnification by
Close-Up Ring Lengths
