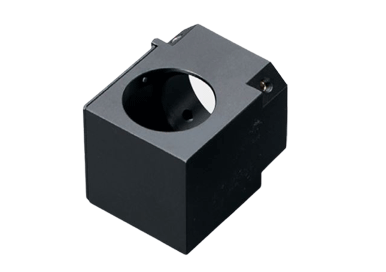

MML Optical Axis Conversion Prism Adapters

• Model Name
• Overview
• Conversion Method
• Lens Barrel Size

• MML-PL25HR
• MML-HR Optical Axis Conversion Prism - Mirror Type
• Side view
• 25

• MML-PL16
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 16

• MML-PL18
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 18

• MML-PL25
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 25

• MML-PP16
• Optical Axis Pitch Conversion Prism (3-mm Pitch Type)
• Optical Axis Pitch Conversion
• 16

• MML-PP18
• Optical Axis Pitch Conversion Prism (3-mm Pitch Type)
• Optical Axis Pitch Conversion
• 18

• MML-PP25
• Optical Axis Pitch Conversion Prism (3-mm Pitch Type)
• Optical Axis Pitch Conversion
• 25

• MML-PSV16R
• Optical Axis Pitch Conversion Side View Prism - Right (Single Side 3-mm Pitch Type)
• Optical Axis Pitch Conversion - Side View
• 16

• MML-PSV16L
• Optical Axis Pitch Conversion Side View Prism - Left (Single Side 3-mm Pitch Type)
• Optical Axis Pitch Conversion - Side View
• 16

• MML-P2S16
• 2-Visual-Field Prism
• 2-Visual-Field
• 16

• MML-2PLBOX
• 2-Visual-Field Optical Unit
• 2-Visual-Field
• -

• MML-P1
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 16

• MML-P2
• Optical Axis Pitch Conversion Prisms
• Optical Axis Pitch Conversion
• 16

• MML-P3
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 25

• MML-P4
• 90-Degree Optical Axis Conversion Prism - Mirror Type
• Side view
• 30

• MML-P6
• 90-Degree Optical Axis Conversion Prism - Pentaprism Type
• Side view
• 16

• MML-P7
• Optical Axis Pitch Conversion Prisms
• Optical Axis Pitch Conversion
• 16

• MML-GA20
• Glass Covers for MML-PL, PP
• φ20 t=1 mm
• -

High-performance Rear Converter Lenses

• Model Name
• Magnification

• ML-RM2X
• 2

• ML-RM1.5X
• 1.5

Coaxial Illumination Accessories

• Model Name
• Magnification

• MML-AD-L-B
• 1.5

Converter Lenses for ML-Z07545HR Series

• Model Name
• Magnification

• ML-Z025HR
• 0.25

• ML-Z03HR
• 0.3

Converter Lenses for ML-Z07545 Series

• Model Name
• Magnification

• ML-RM1.5X
• 1.5

• ML-RM2X
• 2

• ML-Z03
• 0.3

• ML-Z04
• 0.4

• ML-Z05
• 0.5

• ML-Z07
• 0.7

• ML-Z20
• 2

• ML-Z2X
• 2

• ML-Z20
• 2

• ML-Z2X
• 2
