Product
Light Sources Accessories
Light Sources

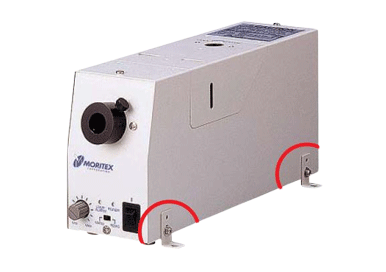

MHF-V501 Series

▪ Compact, lightweight, and cost-effective
▪ Equipped with various control functions
▪ Compliant with environmentally friendly RoHS Directive

  • Model Name
  • Input Voltage
  • Average Lamp Life *1
  • Notes
  • MHF-V501
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • 2,000 hours nominal
  • -
  • MHF-V501-DSO**
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • 2,000 hours nominal
  • Built-in shutter
  • MHF-V501-SC**
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • 2,000 hours nominal
  • Built-in shutter
  • MHF-V501-DSO**
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • 2,000 hours nominal
  • With external digital light intensity control & built-in shutter (normally open)
  • MHF-V501-DSC**
  • AC 85 V to 125 V (50 Hz/ 60 Hz)
  • 2,000 hours nominal
  • With external digital light intensity control & built-in shutter (normally closed)

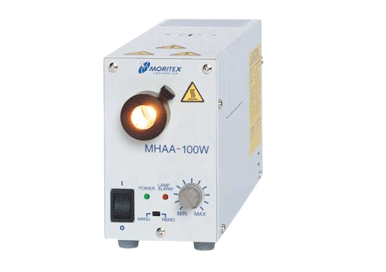

MHAA-100W Series

▪ Worldwide power supply specifications (switching between 100V and 200V)
▪ Supports CE marking as a safety standard
▪ Compliant with environmentally friendly RoHS Directive

  • Model Name
  • AC Type
  • Average Lamp Life *2

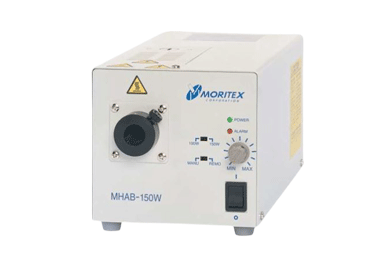

MHAB-150W Series

▪ High illuminance model max 80,000 Lux (2.6 times a 100W light source)
▪ 1100W/150W dual wattage lamp
▪ External linear light intensity control option
▪ Compliant with environmentally friendly RoHS Directive
▪ Worldwide power supply specifications

  • Model Name
  • Input Voltage
  • Average Lamp Life *1
  • Notes
  • MHAB-150W-100V
  • 100 V
  • 50 hours nominal (LM-150), 500 hours nominal (LM-150C), 1,000 hours nominal (LM-100)
  • -
  • MHAB-150W-200V**
  • 200V
  • 50 hours nominal (LM-150), 500 hours nominal (LM-150C), 1,000 hours nominal (LM-100)
  • -
  • MHAB-150W-D-100V
  • 100 V
  • 50 hours nominal (LM-150), 500 hours nominal (LM-150C), 1,000 hours nominal (LM-100)
  • With external digital light intensity control

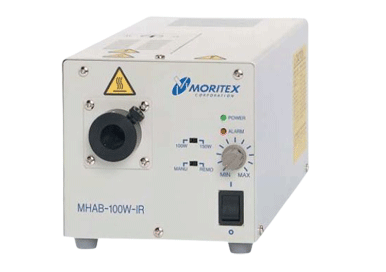

MHAB-100W-IR Series

▪ Only irradiates at silicon transmission wavelength (from 1127 nm)
▪ Heat dissipation mechanism using proprietary technology

  • Model Name
  • AC Type
  • Average Lamp Life *2
