Accessories for Bi-telecentric lens
-

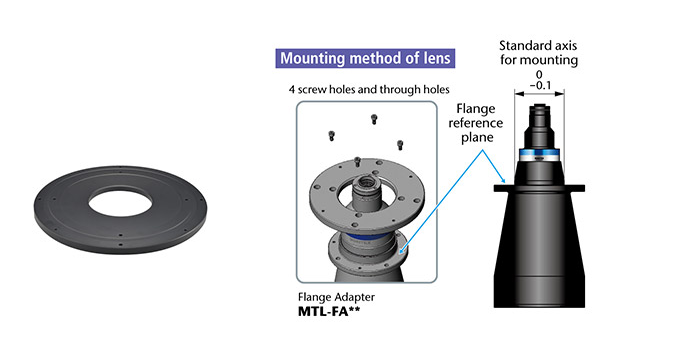

Flange Adapter
Easy to attach MTL and MTI Series with other equipments.
*1 Can not be connected with MTL-9082M95-091or MTL-10082M95-082.
*2 Can not be connected with MTL-12082M95-068 or MTL-13582M95-061.
*3 Can not be connected with MTL-15082M95-055.
*4 Can not be connected with MTL-18082M95-046..
-

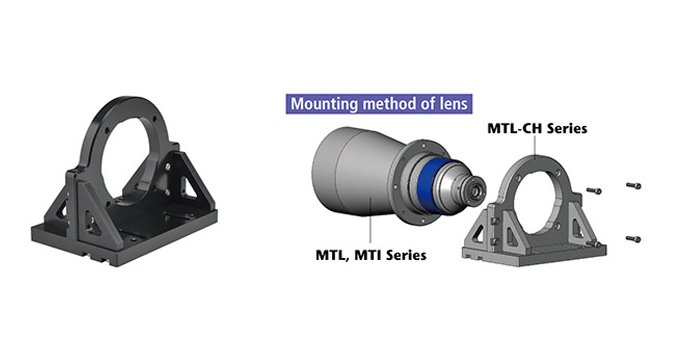

Clamping Holder
Easy to attach MTL and MTI Series with other equipments.
*1 Can not be connected with MTL-9082M95-091or MTL-10082M95-082.
*2 Can not be connected with MTL-12082M95-068 or MTL-13582M95-061.
*3 Can not be connected with MTL-15082M95-055.
*4 Can not be connected with MTL-18082M95-046.
-

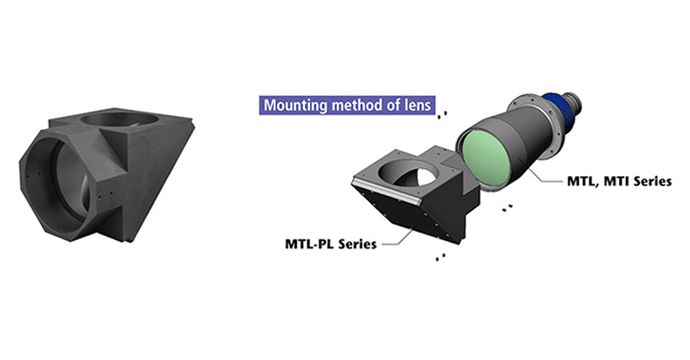

Mirror Unit
This model is for MTL and MTI Series use. This model enables to bend the optical axis by 90 degree in case of any restriction of install when using MTL or MTI Series. When connecting with MTL Series, the image is a mirror image.
* Please be noted that the resolution might be decreased when connecting with MTL Series.
*1 Connect with MTL-P35-ADR when using MTL-35 Series.
*2 Connect with MTI-P45-ADR when using MTI-45 Series.
*3 Connect with MTL-P55-ADR when using MTL-55 Series.
-

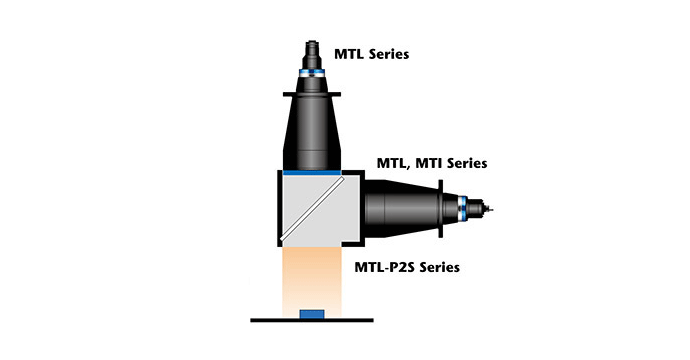

Half Mirror Unit
Enables to obtain single FOV with two magnifications or 2 FoVs with the same magnification by the combination of MTL-P2S and MTL Series.
* Please be noted that the resolution might be decreased when connecting with MTL Series.
*1 Connect with MTL-P35-ADR when using MTL-35 Series.
*2 Connect with MTI-P45-ADR when using MTI-45 Series.
*3 Connect with MTL-P55-ADR when using MTL-55 Series.
-

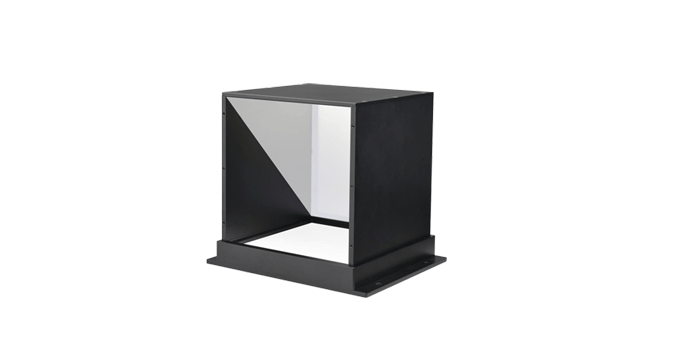

Simulated Coaxial Illumination
This "Simulated Coaxial Illumination"can obtain uniform coaxial epi-illumination for wide FOV of "MTL Series". It can use CompaVis backlight "CV - FL Series" "CV - NFL Series" as light source.
-

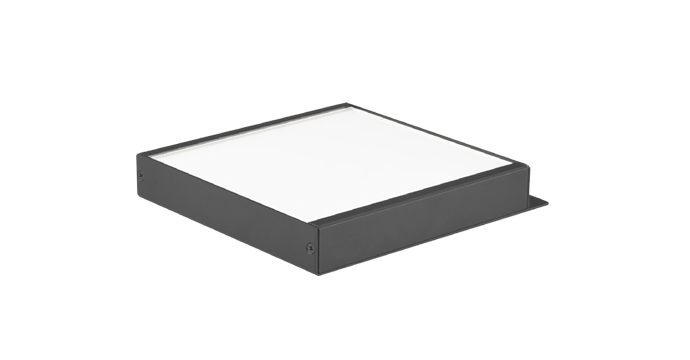

Narrow Angle Backlights
The Narrow Backlight is designed higher directivity in direction of light emitting surface than conventional backlight.
The Narrow Backlight is designed higher directivity in direction of light emitting surface than conventional backlight.
Since wraparound of light to side of the work piece is reduced, it is possible to capture the contour of work piece with higher precision.
By combining with our Bi-telecentric Lenses "MTL Series", it can be applied to more precise image measurement.
-

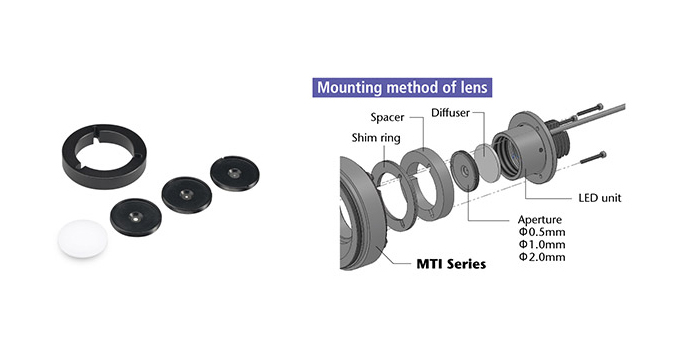

Apertures for Lighting
Enables to increase the percentage of parallel light components and decrease the irradiation divergence angle of MTI Series by connecting with the LED illumination for MTI Series.
